集群节点数量过多,经常会遇到某个节点访问出现问题,却不能及时发现,goldpinger就是为了解决此问题诞生的,与其他服务相比,goldpinger更加轻量
此文档通过argo cd管理goldpinger
尝试过Weave Scope,发现使用资源过多,参考Kubernetes拓扑可视化监控之Scope

参考文档: goldpinger

一, 部署

1 准备配置文件

如果使用argo需要存放到git上,参考 [[../DevOps/ArgoCD#2 argocd-server 配置与使用|ArgoCD]]

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: goldpinger-serviceaccount
  namespace: goldpinger

---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: goldpinger
  namespace: goldpinger
  annotations:
    link.argocd.argoproj.io/external-link: http://10.122.167.173:30080 #argocd显示跳转的链接
  labels:
    app: goldpinger
spec:
  updateStrategy:
    type: RollingUpdate
  selector:
    matchLabels:
      app: goldpinger
  template:
    metadata:
      labels:
        app: goldpinger
    spec:
      serviceAccount: "goldpinger-serviceaccount"
      securityContext:
        runAsNonRoot: true
        runAsUser: 1000
        fsGroup: 2000
      containers:
        - name: goldpinger
          env:
            - name: HOST
              value: "0.0.0.0"
            - name: PORT
              value: "8080"
            - name: HOSTNAME
              valueFrom:
                fieldRef:
                  fieldPath: spec.nodeName
            - name: POD_IP
              valueFrom:
                fieldRef:
                  fieldPath: status.podIP
            - name: HOSTS_TO_RESOLVE
              value: "www.baidu.com ccops.cc kubernetes.default" # 要检测解析域名
            - name: HTTP_TARGETS
              value: http://ccops.cc # 要检测访问域名
            - name: TCP_TARGETS
              value: 8.8.8.8:53  # 要检测使用的dns服务器
          image: "docker.io/bloomberg/goldpinger:v3.7.0"
          imagePullPolicy: Always
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
          resources:
            limits:
              memory: 80Mi
            requests:
              cpu: 1m
              memory: 40Mi
          ports:
            - containerPort: 8080
              name: http
          readinessProbe:
            httpGet:
              path: /healthz
              port: 8080
            initialDelaySeconds: 20
            periodSeconds: 5
          livenessProbe:
            httpGet:
              path: /healthz
              port: 8080
            initialDelaySeconds: 20
            periodSeconds: 5
---
apiVersion: v1
kind: Service
metadata:
  name: goldpinger
  namespace: goldpinger
  annotations:
    link.argocd.argoproj.io/external-link: http://10.122.167.173:30080
  labels:
    app: goldpinger
spec:
  type: NodePort
  ports:
    - port: 8080
      name: http
      nodePort: 30080 # 暴露的端口
  selector:
    app: goldpinger
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: goldpinger-clusterrole
rules:
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - list # 只给查看pod的权限

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: goldpinger-clusterrolebinding
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: goldpinger-clusterrole
subjects:
  - kind: ServiceAccount
    name: goldpinger-serviceaccount
    namespace: goldpinger

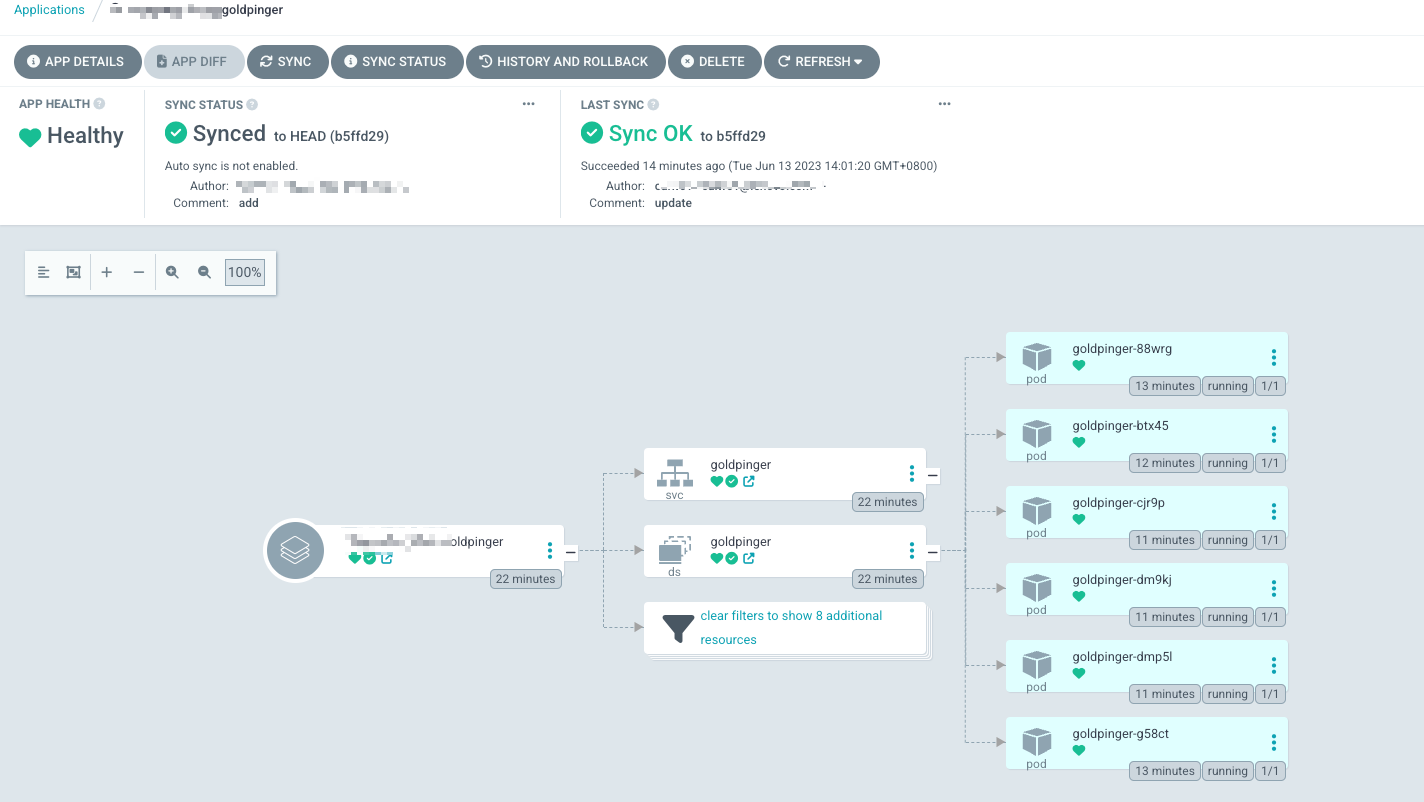

2 argocd同步

这里直接查看状态了

3 查看goldpinger

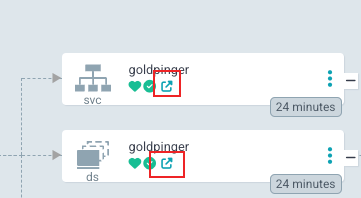

点击这里就会跳转到annotations 里配的地址

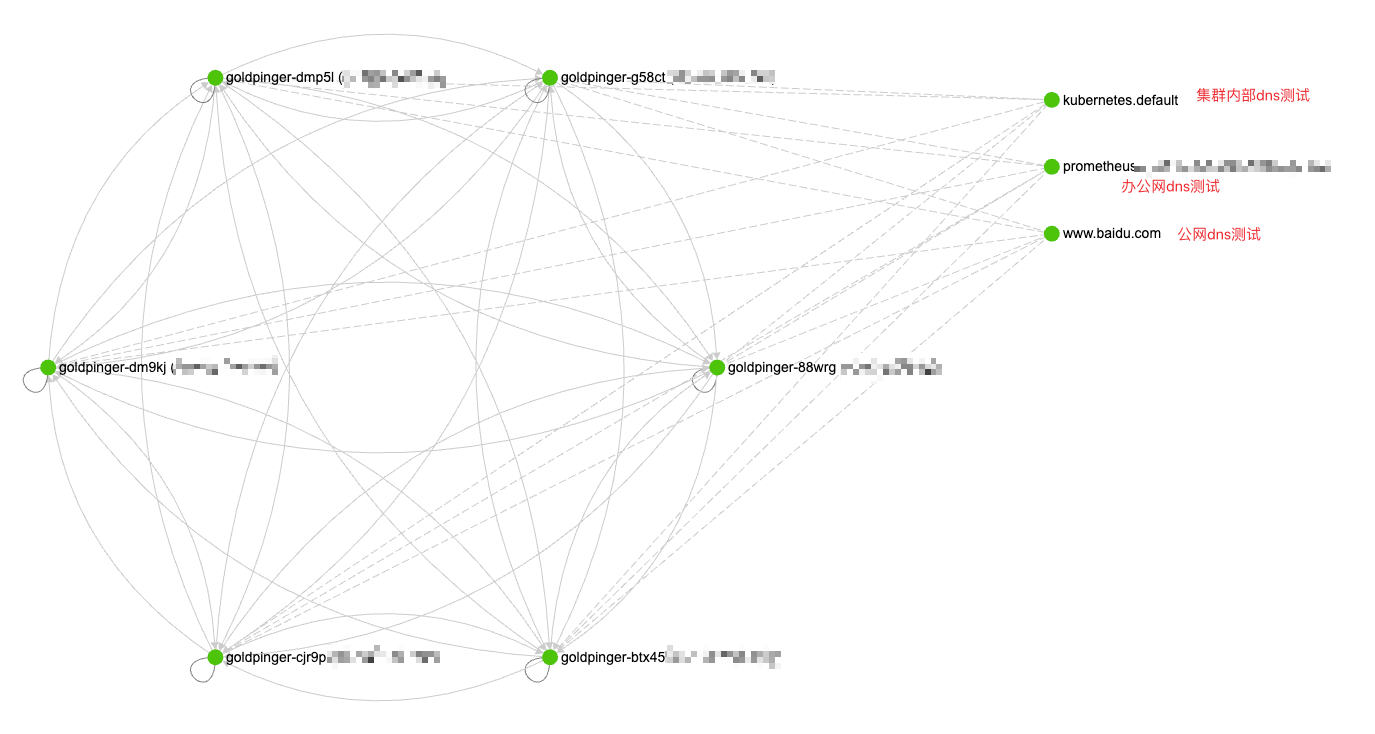

可以看到已经有拓扑了

监控与告警

1 prometheus采集

1
2
3
4
- job_name: 'goldpinger'
  metrics_path: '/metrics'
  static_configs:
  - targets: ["10.1.1.1:30080"]

2 告警规则

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
rules]# cat goldpinger.yml
groups:
- name: goldpinger
  rules:
  - alert: goldpinger_nodes_unhealthy
    expr: sum(goldpinger_nodes_health_total{status="unhealthy"})
      BY (instance, goldpinger_instance) > 0
    for: 5m
    annotations:
      description: |
        Goldpinger instance {{ $labels.goldpinger_instance }} has been reporting unhealthy nodes for at least 5 minutes.
      summary: 'Instance {{ $labels.instance }} down'
  - alert: goldpinger_http_unhealthy
    expr: sum(goldpinger_http_errors_total) BY (instance, goldpinger_instance, host) > 0
    for: 1m
    annotations:
      description: |
        Goldpinger instance {{ $labels.goldpinger_instance }} unable to access  {{ $labels.host }} for at least 1 minutes.
      summary: '{{ $labels.goldpinger_instance }} unable to access {{ $labels.host }}'
  - alert: goldpinger_tcp_unhealthy
    expr: sum(goldpinger_tcp_errors_total) BY (instance, goldpinger_instance, host) > 1
    for: 1m
    annotations:
      description: |
        Goldpinger instance {{ $labels.goldpinger_instance }} unable to access {{ $labels.host }} for at least 1 minutes.
      summary: '{{ $labels.goldpinger_instance }} unable to access {{ $labels.host }}'

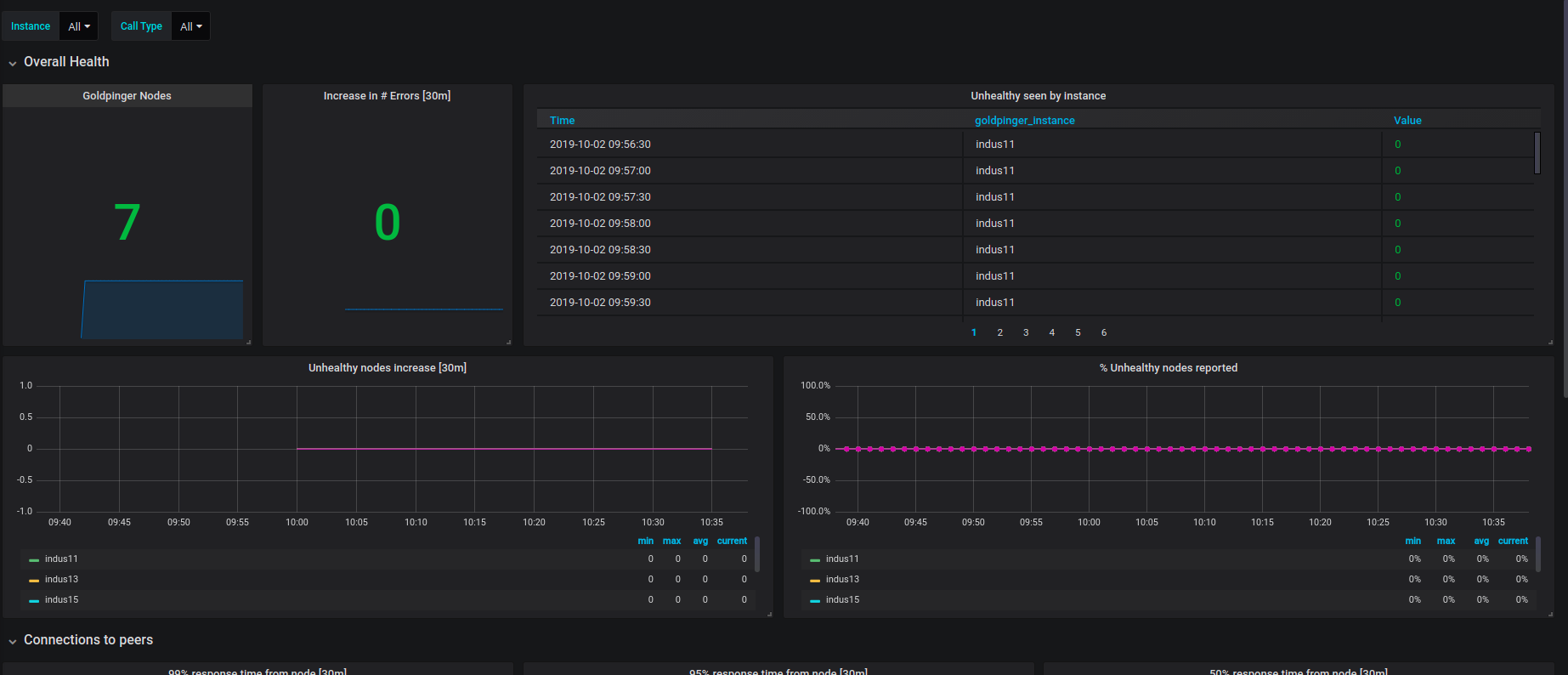

3 grafana

导入此模板

3.1 查看
