1 创建账号

1.1 创建私钥,一定要用 root 用户

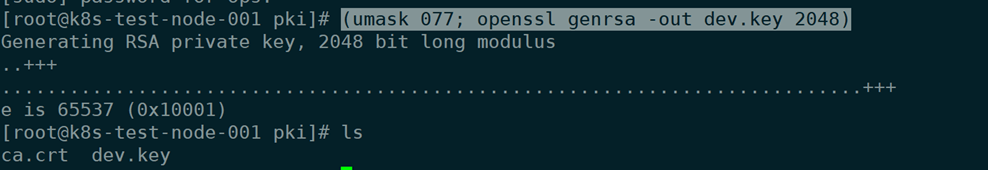

(umask 077; openssl genrsa -out test.key 2048)

image-20211012090216993

1.2 基于私钥生成证书,由 k8s 集群的 ca.crt 签署

CN 为账号名称，OU 为组

openssl req -new -key test.key -out test.csr -subj "/CN=test"

image-20211012090236113

ca.crt 与 ca.key 是 k8s 的秘钥

openssl x509 -req -in test.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out test.crt -days 365

1.3 查看证书

openssl x509 -in test.csr -text -noout

1.4 k8s 创建用户,并使用证书认证

kubectl config set-credentials test --client-certificate=test.crt --client-key=test.key --embed-certs=true

1.5 查看集群

kubectl config get-contexts

image-20211012091028778

1.6 设置上下文,用户访问哪个集群

kubectl config set-context test@kubernetes --cluster=kubernetes --user=test

1.7 查看配置

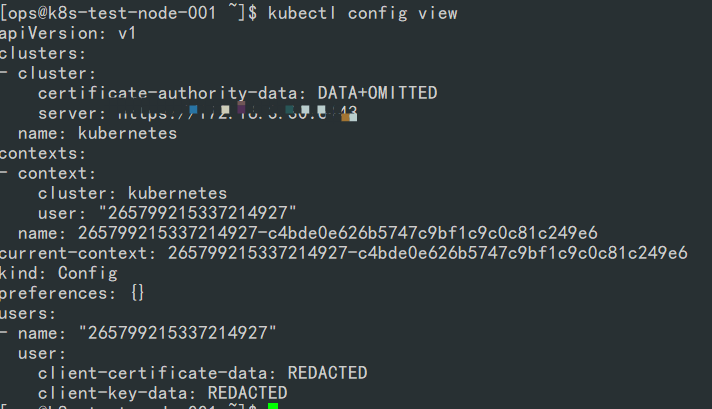

kubectl config view

image-20211012090504473

2 配置权限

2.1 使用系统角色

–clusterrole=view 是系统只读权限

kubectl create clusterrolebinding test-rolebinding --clusterrole=view --user=test

2.2 自定义角色

2.2.1 创建 role

kubectl create clusterrole test-clusterrole --verb=get,list,watch --resource=pods,deploy,svc --dry-run=client -o yaml > test/clusterrole.yaml

编辑 test/clusterrole.yaml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: rongxin-cluster-role
rules:
- apiGroups:
  - ""
  resources:
  - pods
  - services
  - pods/log
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - pods/exec
  verbs:
  - create
- apiGroups:
  - apps
  resources:
  - deployments
  verbs:
  - get
  - list
  - watch

kubectl apply -f test/clusterrole.yaml

2.2.2 查看 role

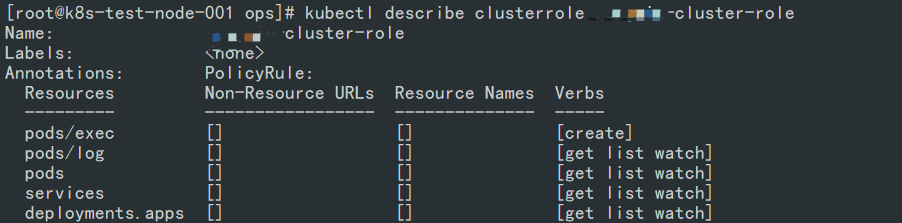

kubectl describe clusterrole test-cluster-role

image-20211012090710033

2.2.3 创建 rolebinding

我习惯备份下,也可以参考上面命令直接运行

kubectl create rolebinding test-dev-rolebinding --clusterrole=test-cluster-role --user=test --dry-run=client -o yaml > test/test-dev-rolebinding.yaml

kubectl apply -f test/test-dev-rolebinding.yaml

2.2.4 查看 rolebinding

kubectl get rolebinding -n dev

image-20211012090931200

kubectl describe rolebinding test-dev-rolebinding -n dev

image-20211012090904150

2.3 查看集群

kubectl config get-contexts

image-20211012091053636

3 导出配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
kubectl config set-context test \
--cluster=kubernetes \
--user=test \
--current-context=test \
--kubeconfig=test.config

kubectl config set-cluster kubernetes \
--certificate-authority=/data/server/certs/ca/k8s/master/ca.pem \ #与上面的ca.crt是同一个文件
--embed-certs=true \
--server=https://10.1.1.1:7443 \
--kubeconfig=test.config

kubectl config set-credentials test \
--client-certificate=./test.crt  --client-key=test.key  --embed-certs=true \
--kubeconfig=test.config

vim test.config
contexts:
- context:
    cluster: kubernetes
    user: test
  name: test@kubernetes
current-context: read-ccops # 修改这里,要不然会报 The connection to the server localhost:8080......


3.1 测试 kubeconfig

1
2
3
4
5
kubectl get pods --kubeconfig=test.config -n kube-system
NAME                                         READY   STATUS    RESTARTS   AGE
csi-rbdplugin-5vfrd                          3/3     Running   0          79m
kubectl delete pods --kubeconfig=test.config -n kube-system csi-rbdplugin-5vfrd
Error from server (Forbidden): pods "csi-rbdplugin-5vfrd" is forbidden: User "test" cannot delete resource "pods" in API group "" in the namespace "kube-system"
